Protan HydraPlan - flexible waterproofing

Protan HydraPlan - flexible waterproofing

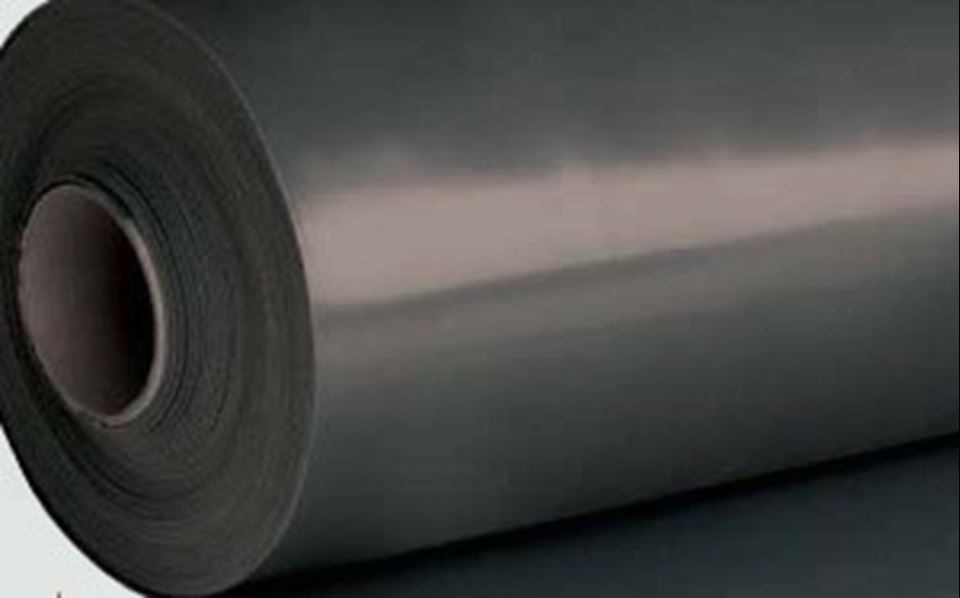

Protan HydraPlan is a homogenous, flexible waterproofing membrane made of plasticised PVC.

  • The membrane is designed for functionality and versatility and can both be used for waterproofing of below ground level constructions and for geomembrane applications.

  • The product has a dark grey surface and is available in different thichnesses.



Below ground level constructions:

  • Horisontal and vertical waterproofing of foundations, basements and terraces.
  • Underground infrastructure exposed to ground water pressure, including domestic buildings, public buildings, industry buildings and urban infrastructure, such as parking garages.

Geomembrane applications:

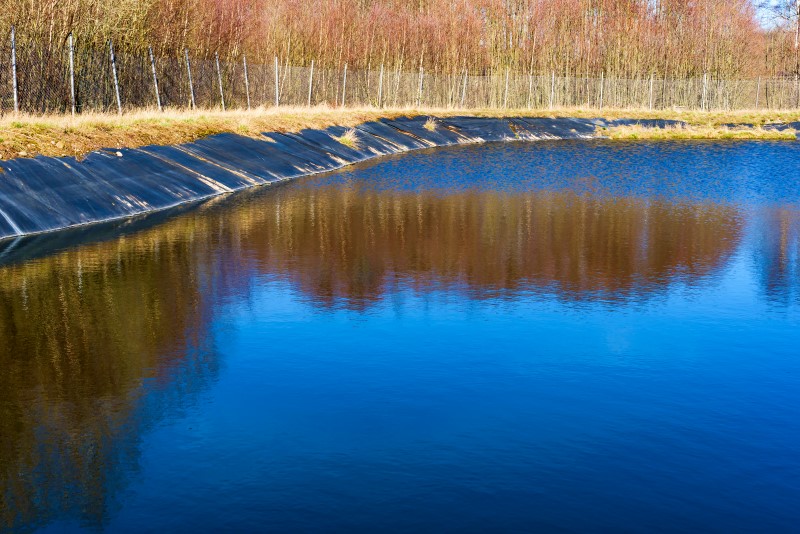

  • Sealing of water structures such as artificial lakes, ponds, irrigation canals, watercourses and waterfalls, dams and hydraulic structures.
  • Rain water retention systems in urban areas.
  • Fire water reservoirs for large buildings.

Characteristics for Protan HydraPlan

  • Complies with EN 13967 and meet all standard requirements

  • UV - and weather resistant.

  • Homogenous membrane (there is no reinforcement inside the product)

  • Not compatible with bitumen.

  • The membrane is welded together using hot air which provides a homogenous joint.

  • The membrane can be recycled and has low carbon footprint.
