EXAMPLES OF APPLICATIONS:

  • Lay-by recesses
  • Cross passages
  • Turn-outs
  • Crossover caverns
  • Anywhere that installation of conventional waterproofing membranes is inherently difficult

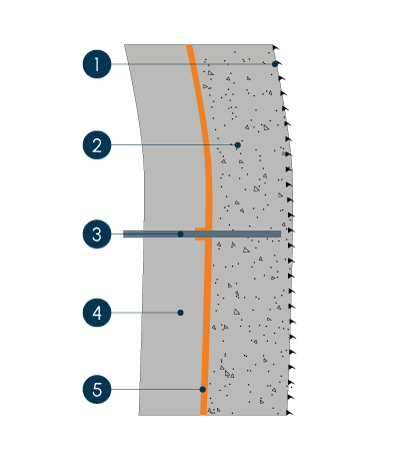

SYSTEMS DESCRIPTIONS:

  1. Excavation Line
  2. Primary Spray Concrete line
  3. Metal insertion embedded in thixotropic anchor grout
  4. Secondary Concrete lining, cast in place or spray
  5. Protan InfraSeal 300 Waterproofing Membrane

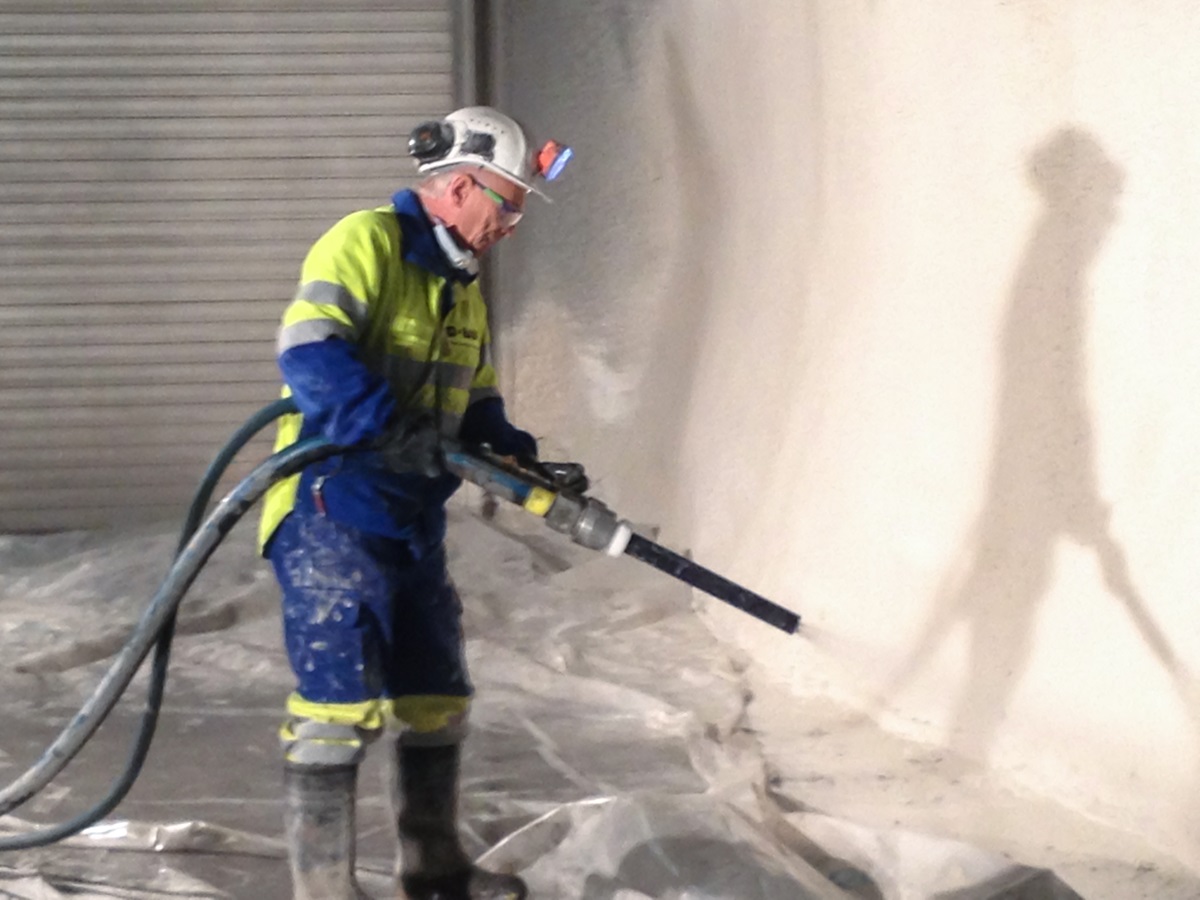

InfraSeal 300, applied in a 3 mm thickness in a single pass over primary concrete, is versatile and bonds well with different concrete placement methods, including steel insertions like rock anchor heads. Use a smoothing layer to cover steel insertions before application. If needed, a fine no-shrinkage mortar (up to 5 mm) can fill gaps around bars, covered by InfraSeal 300.

Documentation

Product data sheet

PDS Protan InfraSeal 300

Declaration of Performance
