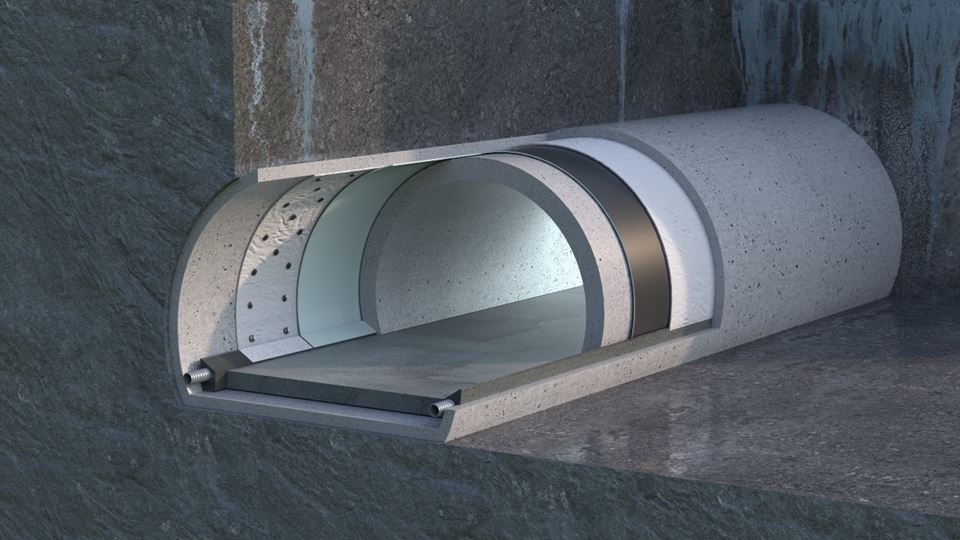

Umbrella/Drainage System - Mined Tunnel

For partial waterproofing the most common tunnel application is the Umbrella System/Drainage System. This system is specifically designed for tunnels with dripping water conditions.

Examples of Application:

Road Tunnels
Railway Tunnels

arrow_downward

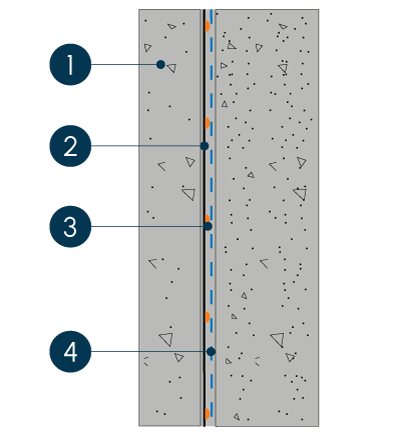

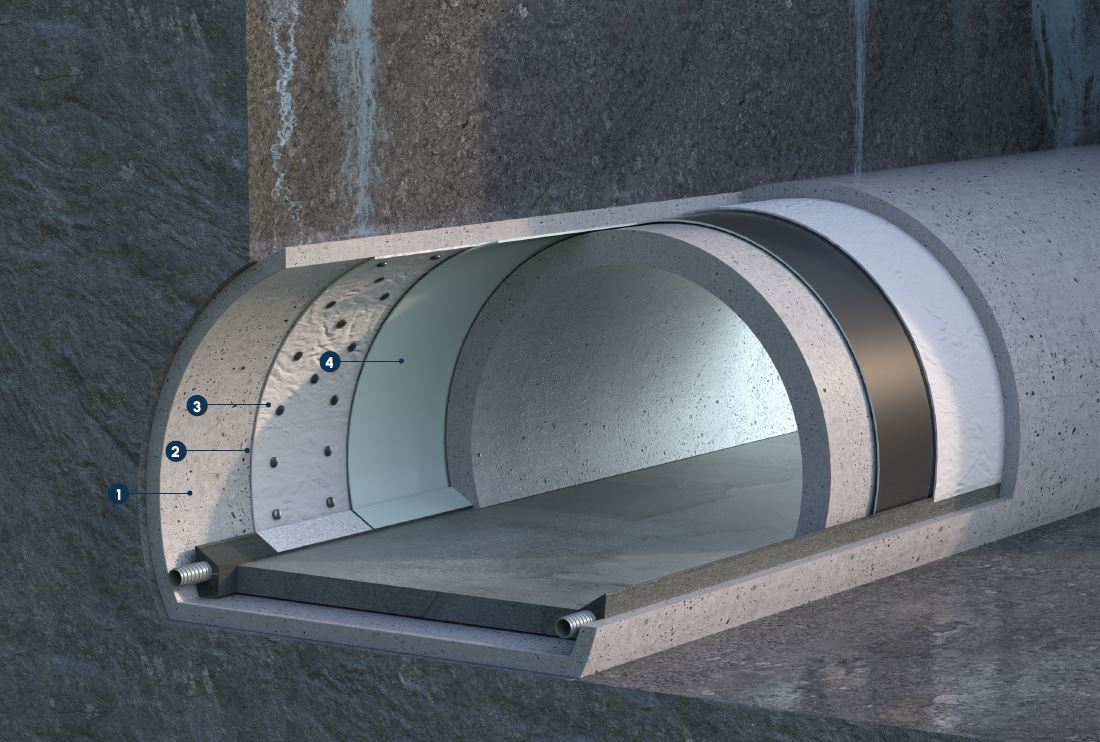

System description:

Protan Disc
In-Situ concrete
Protan InfraPlan Tunnel Membrane
Protan Geo (Geotextile)
Shotcrete
Protan Drain (Drainage Profile)

Protan recommends to use InfraPlan P20, P22 or P22+ for drainage applications.
